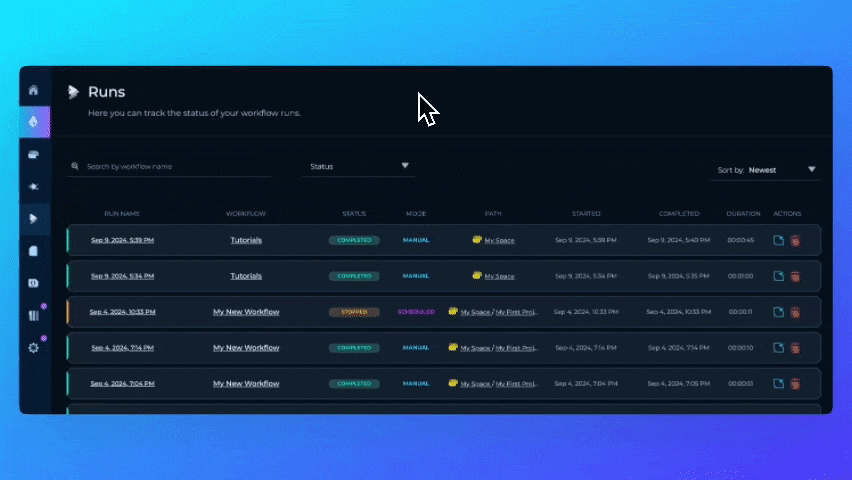

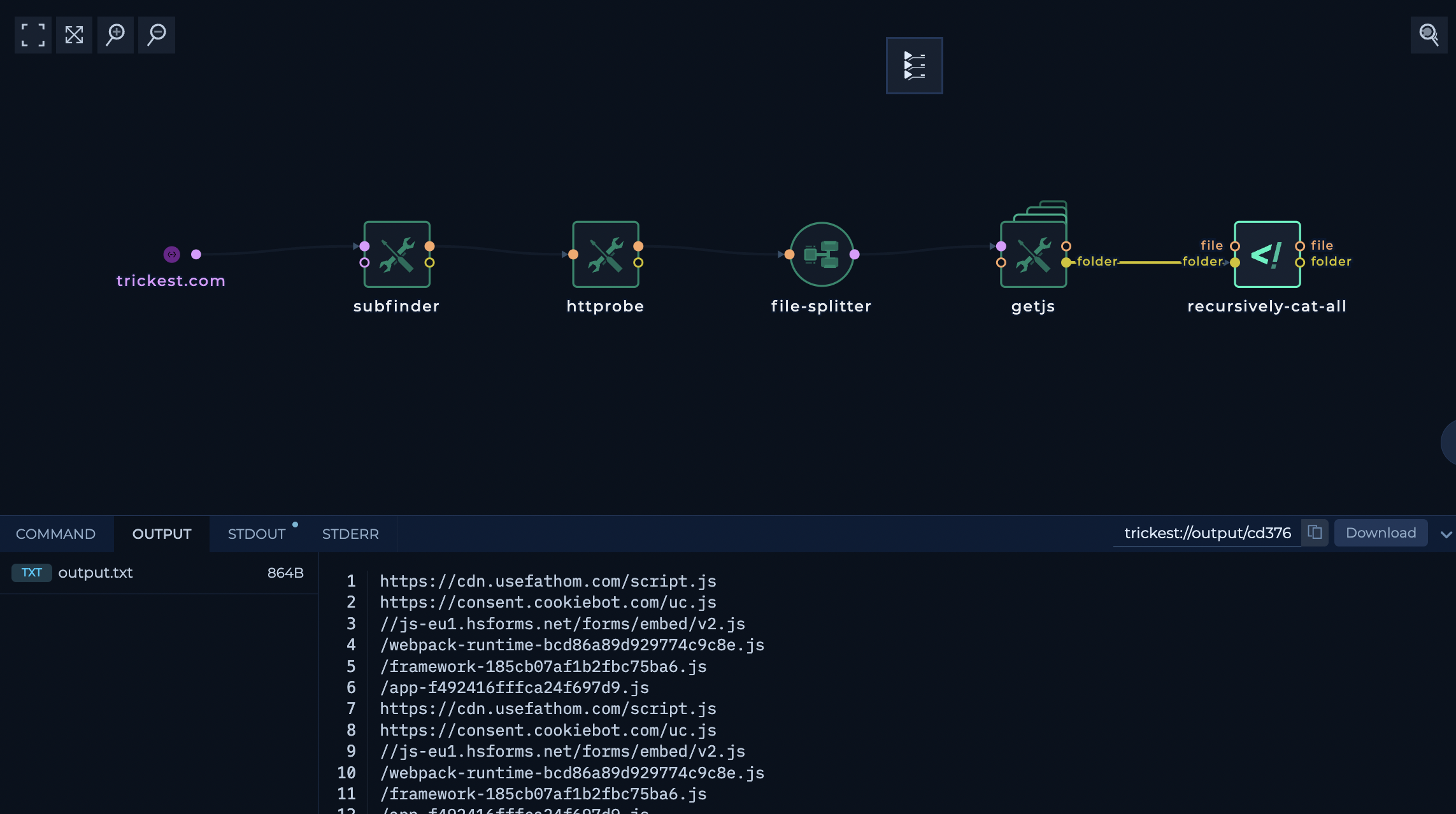

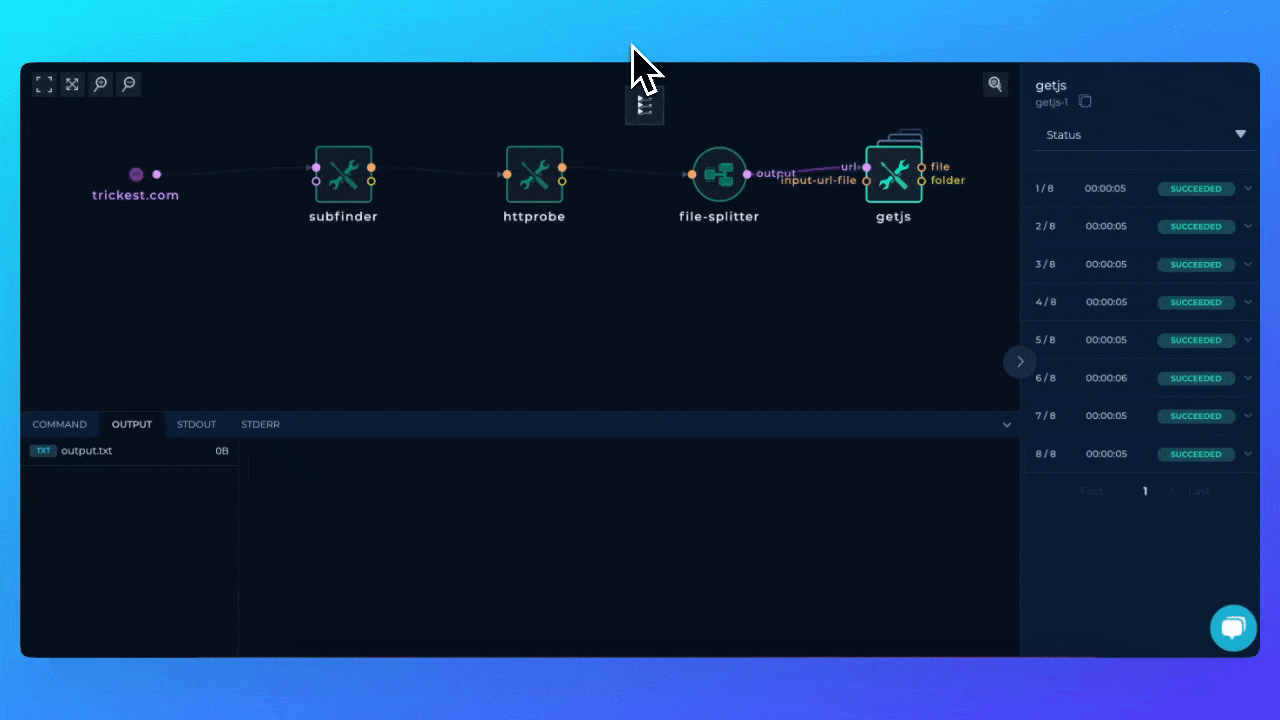

--- title: "Working with Runs" canonical: https://trickest.com/docs/using-the-app/workflow-and-executions/working-with-runs description: "Review workflow runs, navigate between the Run list and the Editor, and inspect a past run on the canvas." --- # Working with Runs ## Overview A **run** is a single execution of a workflow. Each run is recorded independently of the live workflow definition, so you can review past runs, re-run them, and (when the live workflow has diverged from the version that produced a run) restore the workflow to that earlier version. This page covers where to find runs, the Run list page, and how a run opens in the Workflow Editor. --- ## Run Statuses Each run has one of the following statuses: | Category | Status | Meaning | | --- | --- | --- | | Active | **Pending** | Run is queued and waiting to start. | | Active | **Running** | Run is currently executing. | | Active | **Stopping** | Stop was requested; run is winding down. | | Active | **Scheduled** | Run is scheduled for a future time. | | Terminal | **Completed** | All nodes finished successfully. | | Terminal | **Partial Success** | Some nodes succeeded; some did not. | | Terminal | **Failed** | Run finished with one or more failed nodes. | | Terminal | **Stopped** | Run was stopped before completion. | | Terminal | **Error** | Run ended due to a platform error. | Active runs auto-refresh in the UI and are pinned to the top of run lists. --- ## Where to Find Runs Runs surface in three places, each scoped differently: - **Workspace Runs page** lists runs across all workflows in the current workspace. - **Vault Runs page** lists runs across all workspaces in the vault. - **Editor Runs sidebar** lists runs of the workflow you are currently editing. See [Navigating the Editor](./navigating-the-editor) for that view. --- ## The Run List Page The Run list page (workspace or vault) displays one row per run. Each row shows: - **Run ID** and creation type (Manual, Scheduled, or API) - **Status** with duration - **Workflow name** (and workspace badge on the vault page) - **Active machines** (only while the run is active) - **Time** the run was created - **Author** - A **`...`** menu with per-row actions You can filter and sort the list using: - **Status tabs**: **All**, **Active**, **Completed**, **Failed**, **Stopped** - **Recent Workflows** - **Started By** (author) - **Project** - **Sort**: Newest first or Oldest first ### Per-Run Actions Open the **`...`** menu on any row to: - **View in Editor**: open the editor with this run loaded - **View Details**: open a side panel with the run's metadata - **Run Again**: start a new run using the same workflow version - **Rename**: change the run name - **Export IPs**: export the IP addresses used by the run - **Create Workflow**: create a new workflow from the run's workflow version - **Delete**: delete the run (only available for terminal runs) --- ## Opening a Run from the Run List A run row has two distinct click targets that route you to the editor in different states: - Clicking the **Run ID** opens the editor with this run loaded. The URL becomes `/editor/?run=`. - Clicking the **Workflow name** opens the live editor for that workflow with no run context. Use the Run ID when you want to inspect what a specific run produced. Use the workflow name when you want to continue editing the workflow. > **Tip** The same routing applies to **View in Editor** in the `...` menu, which opens the editor with the run loaded. --- ## Viewing a Run in the Editor When you open a run in the editor (from the Run list, the **Runs History** sidebar, or by selecting a run anywhere else), a **Viewing run** banner appears at the top of the canvas. The banner contains: - A **status pill** that reads **Loading...**, **Running**, **Viewing run**, or **Viewing module run** (when the run was a module execution opened in the module editor) depending on the state - A **Back to editor** button to exit run view and return to the live workflow - A **Restore** button (only when the run uses a different workflow version, see below) The editor behaves differently based on whether the run's workflow version matches the live one: - **Same version as the live workflow**: the canvas stays editable. Run statuses and outputs overlay the nodes so you can inspect what each node produced. - **Different version**: the canvas shows the run's historical workflow snapshot in read-only mode. **Restore** appears in the banner so you can replace the live workflow with this version. > **Note** A different version means the workflow structure changed since the run executed. Position-only changes (moving nodes on the canvas) do not count as a different version. For the steps to restore a workflow to a past run's version, see [Restore a Past Run's Version](./building-and-debugging-a-workflow#6-restore-a-past-runs-version) in Building and Debugging a Workflow. --- _Markdown source of https://trickest.com/docs/using-the-app/workflow-and-executions/working-with-runs._
